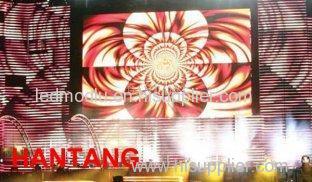

Stable Frame Video Denoising Stage Background LED Display
| Place of Origin: | Zhejiang, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
S<span style="font-family:arial,helvetica,
Stable Frame Video Denoising Stage Background LED Display
1, stable frame & high indensity
2, saving energy
3, low cost
4, easy to install & operate.
|
Module:P12 SMD 1-in-1 |
LED Assembly Type |
SMD 1-in-1, SMD0805 |
|
|
Pixel Pitch |
12mm |
Refresh frequency |
480Hz |
|
Module Size |
192x192mm |
View Angle |
1600/1600 |
|
Module resolution |
16x16pixel |
Working Environment |
Temp:-20°C~60°C, Humidity:10%~90% |
|
Dot density |
6944pixel/sqm |
Working Voltage |
AC:100V~120V AC:220~240V |
|
Pixel configuration |
1R1G1B |
Lifetime |
100, 000Hours |
|
The best view distance |
10-40M |
Gray Scale |
10bit/color |
|
Cabinet dimension |
960mmx960mm(Optional) |
Color Display |
1.07Billion |
|
Cabinet resolution |
96X96 |
Brightness |
≥900nit |
|
Cabinet weight |
45KG/sqm |
MITBF |
0.00001 |
|
Drive mode |
Constant current, 1/8 Scan |
IP |
Simple cabinet without back door |
|
Max Power Consumption |
800W/sm |
Warranty |
2 year |
|
LED Parameter |
R:d(625-630nm) R:IV(180-200mcd) |
G:d(522.5-525nm) G:IV(330-360mcd) |
B:d(467.5-470nm) B:IV(95-105mcd) |
|
Image adjustment |
Brightness, contrast, tone, color range etc |
||
|
Image processing |
Video denoising, rapid motion compensation, edge sharpening, edge smoothing, color coordinate conversation&control , grey scale transformation etc |
||
|
Brightness uniformity |
Ratio of min pixel brightness /max pixel<0.9(When each color reaches its highest brightness) |
||
|
Effective control distance |
Cat-5<100M, Multi-mode fiber:<500M;Single-mode fiber
