P25 Static Scan Mode Vivid Pictures Train Station Outdoor LED Display HTGJ-OF25 manufacturer from China HongKong HanTang Optoelectronics Co.,Limited

Place of Origin:

Zhejiang, China (Mainland)

Product Detail

Model No.: HTGJ-OF25

P25 Static Scan Mode Vivid Pictures Train Station Ou

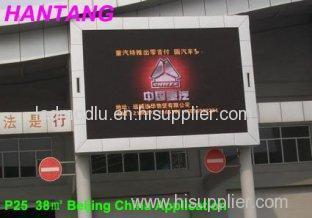

P25 Static Scan Mode Vivid Pictures Train Station Outdoor LED Display

Features.

1. Vivid pictures
2. Big viewing angle distance
3. Relative low price
4.Two years warranty

Technical Parameters of P25 full color outdoor LED Display
Usage	Outdoor
Pitch(mm)	25
Pixel Constitute	2R1G1PB
LED--Opto+Silan	R:λd(625-630nm) G:λd(522.5-525nm) B:λd(467.5-470nm) R:(450-500mcd) G:(1600-1800mcd) G:(350-400mcd)
Module Size(mm)	200*200
Module Resolution	8*8
Recommended Minimum Viewing Distance(m)	>=23
Viewing Angle(°C)	V40, H110
Average Power Consumption	300W/M2
Brightness (white balance)	1500cd/M2
Size of cabinet(mm)	1000100080
Weight of cabinet	60kg/M2
Cabinet pixels(dot)	32*32
Frame frequency	≥60Hz
Refresh rate	≥360Hz
Grey color	≥16.7M
Brightness adjustment	256 grade manual, 8 grade automatic
Average NO failure time	5000 hours
Life span	100000 hours
Working temperature	-30 °C +60°C
Driving Voltage	5VDC
Working Voltage	110 to 220VDC
Scan Mode	static
Display Function	Video, Animation, Graphics, other
Operating system	Windows (2000/XP/Vista)
Control distance	CAT5 cable:<100 m; Single fiber:<10 km
