P16 Module Size 256*128 Full Color Semi-Outdoor Bus Station LED Sign HT-S16 manufacturer from China HongKong HanTang Optoelectronics Co.,Limited

Place of Origin:

Zhejiang, China (Mainland)

Product Detail

Model No.: HT-S16

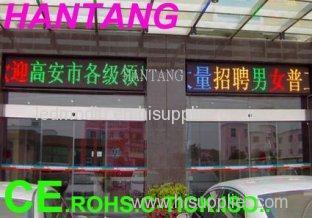

P16 Module Size 256*128 Full Color Semi-Outdoor Bus Station LED

P16 Module Size 256*128 Full Color Semi-Outdoor Bus Station LED Sign

widely used for shops, hotel, bank, custom, bus station, traffic and so on...

Technical Parameters of P16 full color Semi-Outdoor LED Sign
Usage	Semi-Outdoor
Pitch(mm)	16
Pixel Constitute	2R1G1PB
LED--Taiwan Opto	R:λd(625-630nm) G:λd(522.5-525nm) B:λd(467.5-470nm) R:(450-500mcd) G:(1600-1800mcd) G:(350-400mcd)
Pixel Density(dots/M2)	3906
Module Size(mm)	256*128
Module Resolution	16*8
Recommended Minimum Viewing Distance(m)	>=15
Viewing Angle(°C)	V40, H110
Average Power Consumption	1000W/M2
Brightness (white balance)	6500cd/M2
Size of cabinet(mm)	1024768150
Weight of cabinet	45kg/M2
Cabinet pixels(dot)	64*48
Frame frequency	≥60Hz
Refresh rate	≥360Hz
Grey color	≥16.7M
Brightness adjustment	256 grade manual, 8 grade automatic
Average NO failure time	5000 hours
Life span	100000 hours
Working temperature	-30 °C+60°C
Driving Voltage	5VDC
Working Voltage	110 to 220VDC
Scan Mode	static
Display Function	Video, Animation, Graphics, other
Operating system	Windows (2000/XP/Vista)
Control distance	CAT5 cable:<100 m; Single fiber:<10 km
